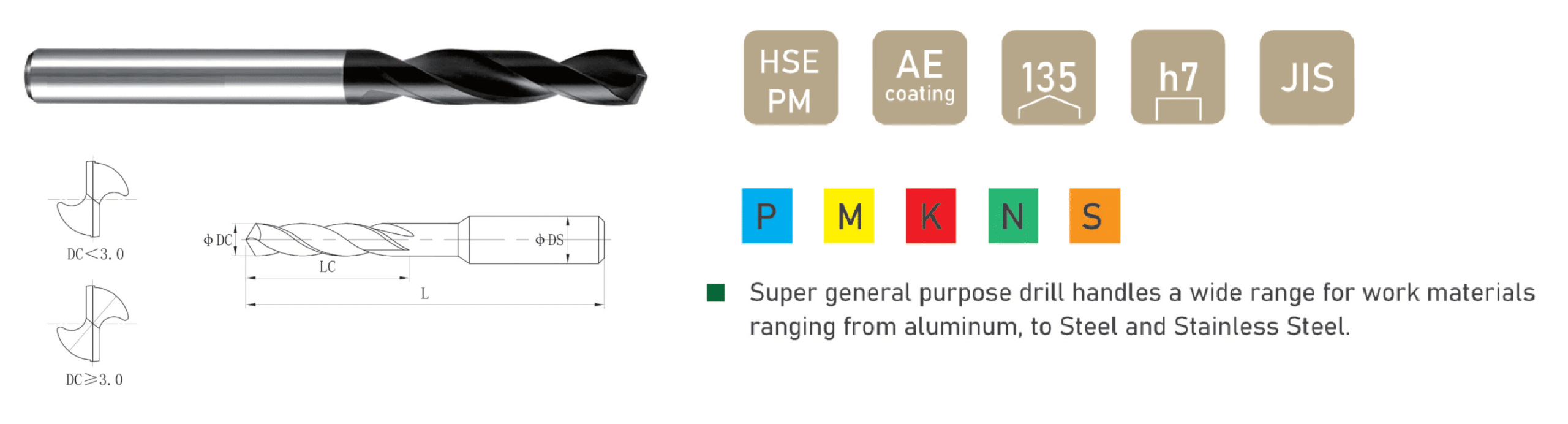

TPM168 Series Super Universal HSS-PM Twist Drills (0.50-20.00mm)
| 0.50-0.99mm |
1.0-1.99.mm |
2.0-2.99mm |
3.0-3.99mm |
4.0-4.99mm |
5.0-5.99mm |
6.0-9.9mm |
10.0-13.9mm |
14.0-17.9mm |
18.0-20.0mm |
| DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
DC*Lc*L*DS |
| 0.5X3X38X3 |
1.0X6X38X3 |
2.0X12X44X3 |
3.0X16X48X3 |
4.0X22X54X4 |
5.0X26X70X6 |
6.0X28X72X6 |
10.0X43X93X10 |
14.0X72X132X16 |
18.0X87X153X20 |
| 0.51X3X38X3 |
1.01X6X38X3 |
2.01X12X44X3 |
3.01X18X50X4 |
4.01X22X66X6 |
5.01X26X70X6 |
6.1X31X75X8 |
10.1X43X100X12 |
14.1X76X136X16 |
18.1X90X156X20 |
| 0.52X3X38X3 |
1.02X6X38X3 |
2.02X12X44X3 |
3.02X18X50X4 |
4.02X22X66X6 |
5.02X26X70X6 |
6.2X31X75X8 |
10.2X43X100X12 |
14.2X76X136X16 |
18.2X90X156X20 |
| 0.53X3X38X3 |
1.03X6X38X3 |
2.03X12X44X3 |
3.03X18X50X4 |
4.03X22X66X6 |
5.03X26X70X6 |
6.3X31X75X8 |
10.3X43X100X12 |
14.3X76X136X16 |
18.3X90X156X20 |
| 0.54X3X38X3 |
1.04X6X38X3 |
2.04X12X44X3 |
3.04X18X50X4 |
4.04X22X66X6 |
5.04X26X70X6 |
6.4X31X75X8 |
10.4X43X100X12 |
14.4X76X136X16 |
18.4X90X156X20 |
| 0.55X3X38X3 |
1.05X6X38X3 |
2.05X12X44X3 |
3.05X18X50X4 |
4.05X22X66X6 |
5.05X26X70X6 |
6.5X31X75X8 |
10.5X43X100X12 |
14.5X76X136X16 |
18.5X90X156X20 |
| 0.56X3X38X3 |
1.06X6X38X3 |
2.06X12X44X3 |
3.06X18X50X4 |
4.06X22X66X6 |
5.06X26X70X6 |
6.6X31X75X8 |
10.6X43X100X12 |
14.6X76X142X20 |
18.6X90X164X25 |
| 0.57X3X38X3 |
1.07X7X39X3 |
2.07X12X44X3 |
3.07X18X50X4 |
4.07X22X66X6 |
5.07X26X70X6 |
6.7X31X75X8 |
10.7X47X104X12 |
14.7X76X142X20 |
18.7X90X164X25 |
| 0.58X3X38X3 |
1.08X7X39X3 |
2.08X12X44X3 |
3.08X18X50X4 |
4.08X22X66X6 |
5.08X26X70X6 |
6.8X34X78X8 |
10.8X47X104X12 |
14.8X76X142X20 |
18.8X90X164X25 |
| 0.59X3X38X3 |
1.09X7X39X3 |
2.09X12X44X3 |
3.09X18X50X4 |
4.09X22X66X6 |
5.09X26X70X6 |
6.9X34X78X8 |
10.9X47X104X12 |
14.9X76X142X20 |
18.9X90X164X25 |
| 0.6X3.5X38X3 |
1.1X7X39X3 |
2.1X12X44X3 |
3.1X18X50X4 |
4.1X22X66X6 |
5.1X26X70X6 |
7X34X78X8 |
11.0X47X104X12 |
15.0X76X142X20 |
19.0X90X164X25 |
| 0.61X3.5X38X3 |
1.11X7X39X3 |
2.11X12X44X3 |
3.11X18X50X4 |
4.11X22X66X6 |
5.11X26X70X6 |
7.1X34X78X8 |
11.1X47X104X12 |
15.1X80X146X20 |
19.1X94X168X25 |
| 0.62X3.5X38X3 |
1.12X7X39X3 |
2.12X12X44X3 |
3.12X18X50X4 |
4.12X22X66X6 |
5.12X26X70X6 |
7.2X34X78X8 |
11.2X47X104X12 |
15.2X80X146X20 |
19.2X94X168X25 |
| 0.63X3.5X38X3 |
1.13X7X39X3 |
2.13X13X45X3 |
3.13X18X50X4 |
4.13X22X66X6 |
5.13X26X70X6 |
7.3X34X78X8 |
11.3X47X104X12 |
15.3X80X146X20 |
19.3X94X168X25 |
| 0.64X3.5X38X3 |
1.14X7X39X3 |
2.14X13X45X3 |
3.14X18X50X4 |
4.14X22X66X6 |
5.14X26X70X6 |
7.4X34X78X8 |
11.4X47X104X12 |
15.4X80X146X20 |
19.4X94X168X25 |
| 0.65X3.5X38X3 |
1.15X7X39X3 |
2.15X13X45X3 |
3.15X18X50X4 |
4.15X22X66X6 |
5.15X26X70X6 |
7.5X34X78X8 |
11.5X47X104X12 |
15.5X80X146X20 |
19.5X94X168X25 |
| 0.66X3.5X38X3 |
1.16X7X39X3 |
2.16X13X45X3 |
3.16X18X50X4 |
4.16X22X66X6 |
5.16X26X70X6 |
7.6X37X81X8 |
11.6X47X104X12 |
15.6X80X146X20 |
19.6X94X168X25 |
| 0.67X3.5X38X3 |
1.17X7X39X3 |
2.17X13X45X3 |
3.17X18X50X4 |
4.17X22X66X6 |
5.17X26X70X6 |
7.7X37X81X8 |
11.7X47X104X12 |
15.7X80X146X20 |
19.7X94X168X25 |
| 0.66X3.5X38X3 |
1.18X7X39X3 |
2.18X13X45X3 |
3.18X18X50X4 |
4.18X22X66X6 |
5.18X26X70X6 |
7.8X37X81X8 |
11.8X47X104X12 |
15.8X80X146X20 |
19.8X94X168X25 |
| 0.69X3.5X38X3 |
1.19X8X40X3 |
2.19X13X45X3 |
3.19X18X50X4 |
4.19X22X66X6 |
5.19X26X70X6 |
7.9X37X81X8 |
11.9X51X108X12 |
15.9X80X146X20 |
19.9X94X168X25 |
| 0.7X4.5X38X3 |
1.2X8X40X3 |
2.20X13X45X3 |
3.2X18X50X4 |
4.2X22X66X6 |
5.2X26X70X6 |
8.0X37X81X8 |
12.0X51X108X12 |
16.0X80X146X20 |
20.0X94X168X25 |
| 0.71X4.5X38X3 |
1.21X8X40X3 |
2.21X13X45X3 |
3.21X18X50X4 |
4.21X22X66X6 |
5.21X26X70X6 |
8.1X37X87X10 |
12.1X51X108X12 |
16.1X84X150X20 |
|
| 0.72X4.5X38X3 |
1.22X8X40X3 |
2.22X13X45X3 |
3.22X18X50X4 |
4.22X22X66X6 |
5.22X26X70X6 |
8.2X37X87X10 |
12.2X51X108X12 |
16.2X84X150X20 |
|
| 0.73X4.5X38X3 |
1.23X8X40X3 |
2.23X13X45X3 |
3.23X18X50X4 |
4.23X22X66X6 |
5.23X26X70X6 |
8.3X37X87X10 |
12.3X51X108X12 |
16.3X84X150X20 |
|
| 0.74X4.5X38X3 |
1.24X8X40X3 |
2.24X13X45X3 |
3.24X18X50X4 |
4.24X22X66X6 |
5.24X26X70X6 |
8.4X37X87X10 |
12.4X51X108X12 |
16.4X84X150X20 |
|
| 0.75X4.5X38X3 |
1.25X8X40X3 |
2.25X13X45X3 |
3.25X18X50X4 |
4.25X22X66X6 |
5.25X26X70X6 |
8.5X37X87X10 |
12.5X51X108X12 |
16.5X84X150X20 |
|
| 0.76X4.5X38X3 |
1.26X8X40X3 |
2.26X13X45X3 |
3.26X18X50X4 |
4.26X24X68X6 |
5.26X26X70X6 |
8.6X40X90X10 |
12.6X51X108X12 |
16.6X84X150X20 |
|
| 0.77X4.5X38X3 |
1.27X8X40X3 |
2.27X13X45X3 |
3.27X18X50X4 |
4.27X24X68X6 |
5.27X26X70X6 |
8.7X40X90X10 |
12.7X51X108X12 |
16.7X84X150X20 |
|
| 0.78X4.5X38X3 |
1.28X8X40X3 |
2.28X13X45X3 |
3.28X18X50X4 |
4.28X24X68X6 |
5.28X26X70X6 |
8.8X40X90X10 |
12.8X51X108X12 |
16.8X84X150X20 |
|
| 0.79X4.5X38X3 |
1.29X8X40X3 |
2.29X13X45X3 |
3.29X18X50X4 |
4.29X24X68X6 |
5.29X26X70X6 |
8.9X40X90X10 |
12.9X51X108X12 |
16.9X84X150X20 |
|
| 0.8X5X38X3 |
1.3X8X40X3 |
2.3X13X45X3 |
3.3X18X50X4 |
4.3X24X68X6 |
5.3X26X70X6 |
9.0X40X90X10 |
13.0X51X108X12 |
17.0X84X150X20 |
|
| 0.81X5X38X3 |
1.31X8X40X3 |
2.31X13X45X3 |
3.31X18X50X4 |
4.31X24X68X6 |
5.31X28X72X6 |
9.1X40X90X10 |
13.1X51X108X12 |
17.1X87X153X20 |
|
| 0.82X5X38X3 |
1.32X8X40X3 |
2.32X13X45X3 |
3.32X18X50X4 |
4.32X24X68X6 |
5.32X28X72X6 |
9.2X40X90X10 |
13.2X51X108X12 |
17.2X87X153X20 |
|
| 0.83X5X38X3 |
1.33X9X41X3 |
2.33X13X45X3 |
3.33X18X50X4 |
4.33X24X68X6 |
5.33X28X72X6 |
9.3X40X90X10 |
13.3X72X132X16 |
17.3X87X153X20 |
|
| 0.84X5X38X3 |
1.34X9X41X3 |
2.34X13X45X3 |
3.34X18X50X4 |
4.34X24X68X6 |
5.34X28X72X6 |
9.4X40X90X10 |
13.4X72X132X16 |
17.4X87X153X20 |
|
| 0.85X5X38X3 |
1.35X9X41X3 |
2.35X13X45X3 |
3.35X18X50X4 |
4.35X24X68X6 |
5.35X28X72X6 |
9.5X40X90X10 |
13.5X72X132X16 |
17.5X87X153X20 |
|
| 0.86X5X38X3 |
1.36X9X41X3 |
2.36X13X45X3 |
3.36X20X52X4 |
4.36X24X68X6 |
5.36X28X72X6 |
9.6X43X93X10 |
13.6X72X132X16 |
17.6X87X153X20 |
|
| 0.87X5X38X3 |
1.37X9X41X3 |
2.37X14X46X3 |
3.37X20X52X4 |
4.37X24X68X6 |
5.37X28X72X6 |
9.7X43X93X10 |
13.7X72X132X16 |
17.7X87X153X20 |
|
| 0.88X5X38X3 |
1.38X9X41X3 |
2.38X14X46X3 |
3.38X20X52X4 |
4.38X24X68X6 |
5.38X28X72X6 |
9.8X43X93X10 |
13.8X72X132X16 |
17.8X87X153X20 |
|
| 0.89X5X38X3 |
1.39X9X41X3 |
2.39X14X46X3 |
3.39X20X52X4 |
4.39X24X68X6 |
5.39X28X72X6 |
9.9X43X93X10 |
13.9X72X132X16 |
17.9X87X153X20 |
|
| 0.9X5.5X38X3 |
1.4X9X41X3 |
2.4X14X46X3 |
3.4X20X52X4 |
4.4X24X68X6 |
5.4X28X72X6 |
|
|
|
|
| 0.91X5.5X38X3 |
1.41X9X41X3 |
2.41X14X46X3 |
3.41X20X52X4 |
4.41X24X68X6 |
5.41X28X72X6 |
|
|
|
|
| 0.92X5.5X38X3 |
1.42X9X41X3 |
2.42X14X46X3 |
3.42X20X52X4 |
4.42X24X68X6 |
5.42X28X72X6 |
|
|
|
|
| 0.93X5.5X38X3 |
1.43X9X41X3 |
2.43X14X46X3 |
3.43X20X52X4 |
4.43X24X68X6 |
5.43X28X72X6 |
|
|
|
|
| 0.94X5.5X38X3 |
1.44X9X41X3 |
2.44X14X46X3 |
3.44X20X52X4 |
4.44X24X68X6 |
5.44X28X72X6 |
|
|
|
|
| 0.95X5.5X38X3 |
1.45X9X41X3 |
2.45X14X46X3 |
3.45X20X52X4 |
4.45X24X68X6 |
5.45X28X72X6 |
|
|
|
|
| 0.96X5.5X38X3 |
1.46X9X41X3 |
2.46X14X46X3 |
3.46X20X52X4 |
4.46X24X68X6 |
5.46X28X72X6 |
|
|
|
|
| 0.97X5.5X38X3 |
1.47X9X41X3 |
2.47X14X46X3 |
3.47X20X52X4 |
4.47X24X68X6 |
5.47X28X72X6 |
|
|
|
|
| 0.98X5.5X38X3 |
1.48X9X41X3 |
2.48X14X46X3 |
3.48X20X52X4 |
4.48X24X68X6 |
5.48X28X72X6 |
|
|
|
|
| 0.99X5.5X38X3 |
1.49X9X41X3 |
2.49X14X46X3 |
3.49X20X52X4 |
4.49X24X68X6 |
5.49X28X72X6 |
|
|
|
|
|
1.5X9X41X3 |
2.5X14X46X3 |
3.5X20X52X4 |
4.5X24X68X6 |
5.5X28X72X6 |
|
|
|
|
|
1.51X10X42X3 |
2.51X14X46X3 |
3.51X20X52X4 |
4.51X24X68X6 |
5.51X28X72X6 |
|
|
|
|
|
1.52X10X42X3 |
2.52X14X46X3 |
3.52X20X52X4 |
4.52X24X68X6 |
5.52X28X72X6 |
|
|
|
|
|
1.53X10X42X3 |
2.53X14X46X3 |
3.53X20X52X4 |
4.53X24X68X6 |
5.53X28X72X6 |
|
|
|
|
|
1.54X10X42X3 |
2.54X14X46X3 |
3.54X20X52X4 |
4.54X24X68X6 |
5.54X28X72X6 |
|
|
|
|
|
1.55X10X42X3 |
2.55X14X46X3 |
3.55X20X52X4 |
4.55X24X68X6 |
5.55X28X72X6 |
|
|
|
|
|
1.56X10X42X3 |
2.56X14X46X3 |
3.56X20X52X4 |
4.56X24X68X6 |
5.56X28X72X6 |
|
|
|
|
|
1.57X10X42X3 |
2.57X14X46X3 |
3.57X20X52X4 |
4.57X24X68X6 |
5.57X28X72X6 |
|
|
|
|
|
1.58X10X42X3 |
2.58X14X46X3 |
3.58X20X52X4 |
4.58X24X68X6 |
5.58X28X72X6 |
|
|
|
|
|
1.59X10X42X3 |
2.59X14X46X3 |
3.59X20X52X4 |
4.59X24X68X6 |
5.59X28X72X6 |
|
|
|
|
|
1.6X10X42X3 |
2.6X14X46X3 |
3.6X20X52X4 |
4.6X24X68X6 |
5.6X28X72X6 |
|
|
|
|
|
1.61X10X42X3 |
2.61X14X46X3 |
3.61X20X52X4 |
4.61X24X68X6 |
5.61X28X72X6 |
|
|
|
|
|
1.62X10X42X3 |
2.62X14X46X3 |
3.62X20X52X4 |
4.62X24X68X6 |
5.62X28X72X6 |
|
|
|
|
|
1.63X10X42X3 |
2.63X14X46X3 |
3.63X20X52X4 |
4.63X24X68X6 |
5.63X28X72X6 |
|
|
|
|
|
1.64X10X42X3 |
2.64X14X46X3 |
3.64X20X52X4 |
4.64X24X68X6 |
5.64X28X72X6 |
|
|
|
|
|
1.65X10X42X3 |
2.65X14X46X3 |
3.65X20X52X4 |
4.65X24X68X6 |
5.65X28X72X6 |
|
|
|
|
|
1.66X10X42X3 |
2.66X16X48X3 |
3.66X20X52X4 |
4.66X24X68X6 |
5.66X28X72X6 |
|
|
|
|
|
1.67X10X42X3 |
2.67X16X48X3 |
3.67X20X52X4 |
4.67X24X68X6 |
5.67X28X72X6 |
|
|
|
|
|
1.68X10X42X3 |
2.68X16X48X3 |
3.68X20X52X4 |
4.68X24X68X6 |
5.68X28X72X6 |
|
|
|
|
|
1.69X10X42X3 |
2.69X16X48X3 |
3.69X20X52X4 |
4.69X24X68X6 |
5.69X28X72X6 |
|
|
|
|
|
1.7X10X42X3 |
2.7X16X48X3 |
3.7X20X52X4 |
4.7X24X68X6 |
5.7X28X72X6 |
|
|
|
|
|
1.71X11X43X3 |
2.71X16X48X3 |
3.71X20X52X4 |
4.71X24X68X6 |
5.71X28X72X6 |
|
|
|
|
|
1.72X11X43X3 |
2.72X16X48X3 |
3.72X20X52X4 |
4.72X24X68X6 |
5.72X28X72X6 |
|
|
|
|
|
1.73X11X43X3 |
2.73X16X48X3 |
3.73X20X52X4 |
4.73X24X68X6 |
5.73X28X72X6 |
|
|
|
|
|
1.74X11X43X3 |
2.74X16X48X3 |
3.74X20X52X4 |
4.74X24X68X6 |
5.74X28X72X6 |
|
|
|
|
|
1.75X11X43X3 |
2.75X16X48X3 |
3.75X20X52X4 |
4.75X24X68X6 |
5.75X28X72X6 |
|
|
|
|
|
1.76X11X43X3 |
2.76X16X48X3 |
3.76X22X54X4 |
4.76X26X70X6 |
5.76X28X72X6 |
|
|
|
|
|
1.77X11X43X3 |
2.77X16X48X3 |
3.77X22X54X4 |
4.77X26X70X6 |
5.77X28X72X6 |
|
|
|
|
|
1.78X11X43X3 |
2.78X16X48X3 |
3.78X22X54X4 |
4.78X26X70X6 |
5.78X28X72X6 |
|
|
|
|
|
1.79X11X43X3 |
2.79X16X48X3 |
3.79X22X54X4 |
4.79X26X70X6 |
5.79X28X72X6 |
|
|
|
|
|
1.8X11X43X3 |
2.80X16X48X3 |
3.8X22X54X4 |
4.8X26X70X6 |
5.8X28X72X6 |
|
|
|
|
|
1.81X11X43X3 |
2.81X16X48X3 |
3.81X22X54X4 |
4.81X26X70X6 |
5.81X28X72X6 |
|
|
|
|
|
1.82X11X43X3 |
2.82X16X48X3 |
3.82X22X54X4 |
4.82X26X70X6 |
5.82X28X72X6 |
|
|
|
|
|
1.83X11X43X3 |
2.83X16X48X3 |
3.83X22X54X4 |
4.83X26X70X6 |
5.83X28X72X6 |
|
|
|
|
|
1.84X11X43X3 |
2.84X16X48X3 |
3.84X22X54X4 |
4.84X26X70X6 |
5.84X28X72X6 |
|
|
|
|
|
1.85X11X43X3 |
2.85X16X48X3 |
3.85X22X54X4 |
4.85X26X70X6 |
5.85X28X72X6 |
|
|
|
|
|
1.86X11X43X3 |
2.86X16X48X3 |
3.86X22X54X4 |
4.86X26X70X6 |
5.86X28X72X6 |
|
|
|
|
|
1.87X11X43X3 |
2.87X16X48X3 |
3.87X22X54X4 |
4.87X26X70X6 |
5.87X28X72X6 |
|
|
|
|
|
1.88X11X43X3 |
2.88X16X48X3 |
3.88X22X54X4 |
4.88X26X70X6 |
5.88X28X72X6 |
|
|
|
|
|
1.89X11X43X3 |
2.89X16X48X3 |
3.89X22X54X4 |
4.89X26X70X6 |
5.89X28X72X6 |
|
|
|
|
|
1.9X11X43X3 |
2.9X16X48X3 |
3.9X22X54X4 |
4.9X26X70X6 |
5.9X28X72X6 |
|
|
|
|
|
1.91X12X44X3 |
2.91X16X48X3 |
3.91X22X54X4 |
4.91X26X70X6 |
5.91X28X72X6 |
|
|
|
|
|
1.92X12X44X3 |
2.92X16X48X3 |
3.92X22X54X4 |
4.92X26X70X6 |
5.92X28X72X6 |
|
|
|
|
|
1.93X12X44X3 |
2.93X16X48X3 |
3.93X22X54X4 |
4.93X26X70X6 |
5.93X28X72X6 |
|
|
|
|
|
1.94X12X44X3 |
2.94X16X48X3 |
3.94X22X54X4 |
4.94X26X70X6 |
5.94X28X72X6 |
|
|
|
|
|
1.95X12X44X3 |
2.95X16X48X3 |
3.95X22X54X4 |
4.95X26X70X6 |
5.95X28X72X6 |
|
|
|
|
|
1.96X12X44X3 |
2.96X16X48X3 |
3.96X22X54X4 |
4.96X26X70X6 |
5.96X28X72X6 |
|
|
|
|
|
1.97X12X44X3 |
2.97X16X48X3 |
3.97X22X54X4 |
4.97X26X70X6 |
5.97X28X72X6 |
|
|
|
|
|
1.98X12X44X3 |
2.98X16X48X3 |
3.98X22X54X4 |
4.98X26X70X6 |
5.98X28X72X6 |
|
|
|
|
|
1.99X12X44X3 |
2.99X16X48X3 |
3.99X22X54X4 |
4.99X26X70X6 |
5.99X28X72X6 |
|
|
|
|
